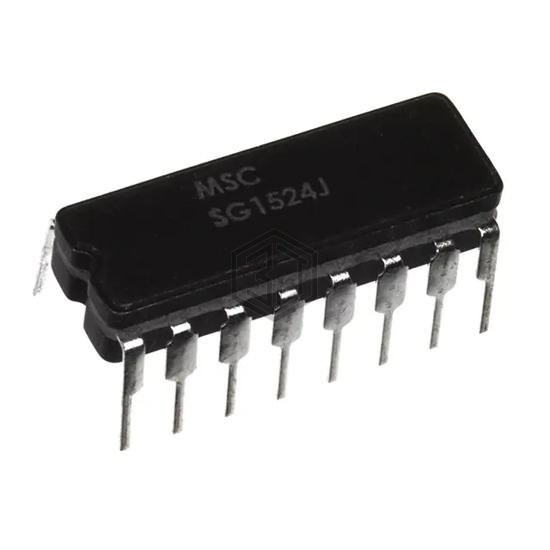

IC REG CTRLR MULT TOPOLOGY 16DIP
SG1524J is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR MULT TOPOLOGY 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 40V, package / case 16-CDIP (0.300", 7.62mm).
In Stock: 4,440
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Flyback, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Frequency - Switching | 100kHz ~ 300kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
SG1524J is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG1524J-883B | Microchip Technology | IC REG CTRLR MULT TOP 16JDIP | 100% | View |
| SG1524J-DESC | Microchip Technology | IC REG CTRLR MULT TOP 16JDIP | 100% | View |
| SG1524J-JAN | Microchip Technology | IC REG CTRLR MULT TOP 16JDIP | 100% | View |
Submit your RFQ for SG1524J and get a quote within 24 hours.
