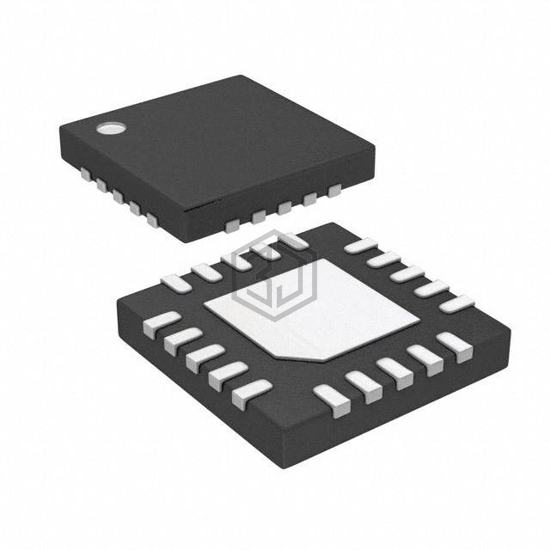

IC MCU 8BIT 14KB FLASH 20UQFN
PIC16LF1509-I/GZ is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 14KB FLASH 20UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 20-UFQFN Exposed Pad.
In Stock: 9,835
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 12x10b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-UFQFN Exposed Pad |
| Supplier Device Package | 20-UQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| Z8F021ASH020EG2156 | Zilog | IC MCU 8BIT 2KB FLASH 20SOIC | 94% | View |
| PIC16F627-20E/SO | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 18SOIC | 92% | View |
| PIC16C773-E/SS | Microchip Technology | IC MCU 8BIT 7KB OTP 28SSOP | 85% | View |
| Z8F0823SB005EG | Zilog | IC MCU 8BIT 8KB FLASH 8SOIC | 80% | View |
| ATTINY13-20MUR | Microchip Technology | IC MCU 8BIT 1KB FLASH 20QFN | 80% | View |
| Z8F1622AR020EG | Zilog | IC MCU 8BIT 16KB FLASH 64LQFP | 79% | View |
Submit your RFQ for PIC16LF1509-I/GZ and get a quote within 24 hours.
