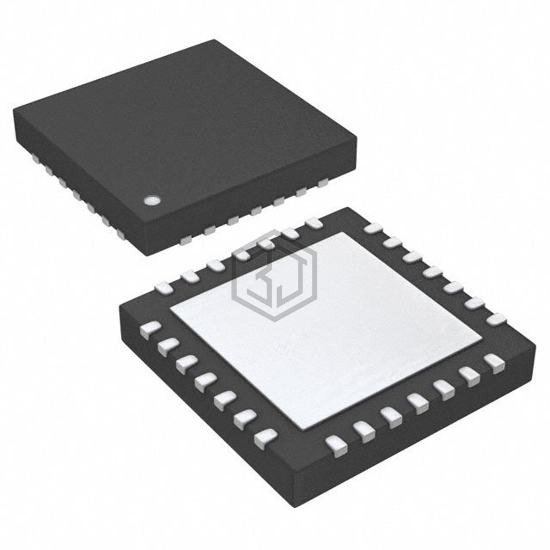

IC MCU 8BIT 14KB FLASH 28QFN
PIC16F76-E/ML is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 14KB FLASH 28QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4V ~ 5.5V, package / case 28-VQFN Exposed Pad.
In Stock: 9,676
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 368 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Data Converters | A/D 5x8b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VQFN Exposed Pad |
| Supplier Device Package | 28-QFN (6x6) |
PIC16F76-E/ML is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F687-E/SS | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SSOP | 88% | View |
| PIC16F687-E/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20QFN | 88% | View |
| PIC16LC717-E/SO | Microchip Technology | IC MCU 8BIT 3.5KB OTP 18SOIC | 88% | View |
| PIC16LF1518-E/ML | Microchip Technology | IC MCU 8BIT 28KB FLASH 28QFN | 87% | View |
| PIC16C505-20E/SL | Microchip Technology | IC MCU 8BIT 1.5KB OTP 14SOIC | 86% | View |
| ATTINY1626-MF | Microchip Technology | IC MCU 8BIT 16KB FLASH 20VQFN | 86% | View |
Submit your RFQ for PIC16F76-E/ML and get a quote within 24 hours.
