IC MCU 8BIT 7KB FLASH 40DIP

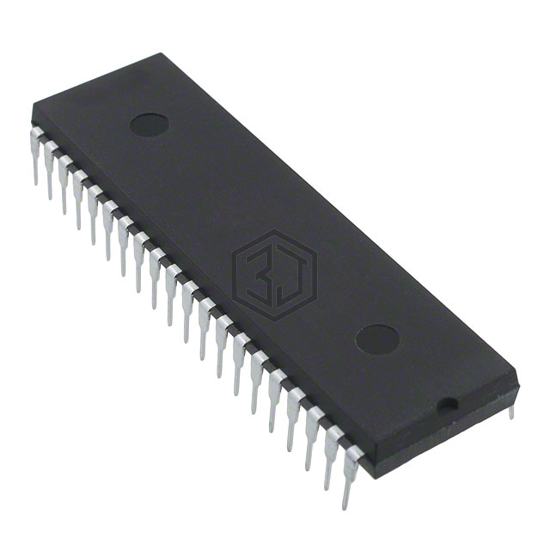

PIC16F747-E/P is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 7KB FLASH 40DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4V ~ 5.5V, package / case 40-DIP (0.600", 15.24mm).
In Stock: 7,524
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 36 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 368 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Data Converters | A/D 14x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP |
PIC16F747-E/P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F877A-E/P | Microchip Technology | IC MCU 8BIT 14KB FLASH 40DIP | 99% | View |
| PIC16F876A-E/SP | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SPDIP | 93% | View |
| PIC16F917-E/P | Microchip Technology | IC MCU 8BIT 14KB FLASH 40DIP | 90% | View |
| PIC16F727-E/P | Microchip Technology | IC MCU 8BIT 14KB FLASH 40DIP | 89% | View |
| ATMEGA4809-PF | Microchip Technology | IC MCU 8BIT 48KB FLASH 40DIP | 88% | View |
| PIC16F628A-E/P | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 18DIP | 85% | View |
Submit your RFQ for PIC16F747-E/P and get a quote within 24 hours.
