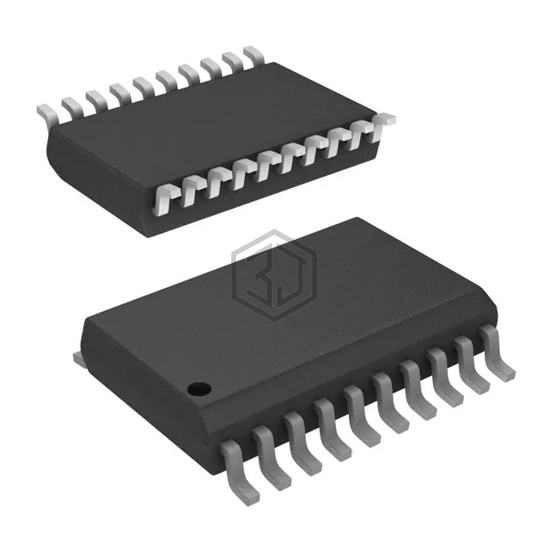

IC MCU 8BIT 7KB FLASH 20SOIC
PIC16F685-I/SO is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 7KB FLASH 20SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 20-SOIC (0.295", 7.50mm Width).
In Stock: 8,799
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F57T-I/SS | Microchip Technology | IC MCU 8BIT 3KB FLASH 28SSOP | 99% | View |
| PIC16LF1507-I/SO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SOIC | 98% | View |
| Z8F0430SH020EG | Zilog | IC MCU 8BIT 4KB FLASH 20SOIC | 95% | View |
| AT89LP4052-20XU | Atmel | IC MCU 8BIT 4KB FLASH 20TSSOP | 95% | View |
| ATMEGA4808-AFR | Microchip Technology | IC MCU 8BIT 48KB FLASH 32TQFP | 93% | View |
| ATTINY24A-SSFR | Microchip Technology | IC MCU 8BIT 2KB FLASH 14SOIC | 93% | View |
Submit your RFQ for PIC16F685-I/SO and get a quote within 24 hours.
