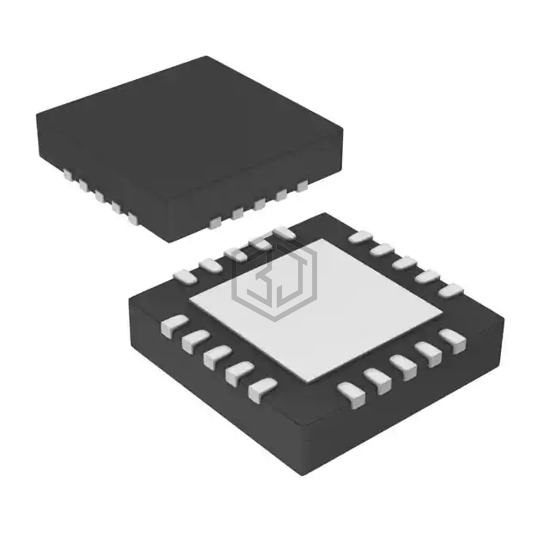

IC MCU 8BIT 7KB FLASH 20QFN
PIC16F685-E/ML is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 7KB FLASH 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 20-VFQFN Exposed Pad.
In Stock: 8,036
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16LF1516-E/ML | Microchip Technology | IC MCU 8BIT 14KB FLASH 28QFN | 94% | View |
| PIC16LF723A-E/MV | Microchip Technology | IC MCU 8BIT 7KB FLASH 28UQFN | 94% | View |
| PIC16LF722A-E/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 28QFN | 94% | View |
| PIC16F505-E/SL | Microchip Technology | IC MCU 8BIT 1.5KB FLASH 14SOIC | 93% | View |
| PIC16F526-E/SL | Microchip Technology | IC MCU 8BIT 1.5KB FLASH 14SOIC | 93% | View |
| PIC16F627A-E/ML | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 28QFN | 93% | View |
Submit your RFQ for PIC16F685-E/ML and get a quote within 24 hours.
