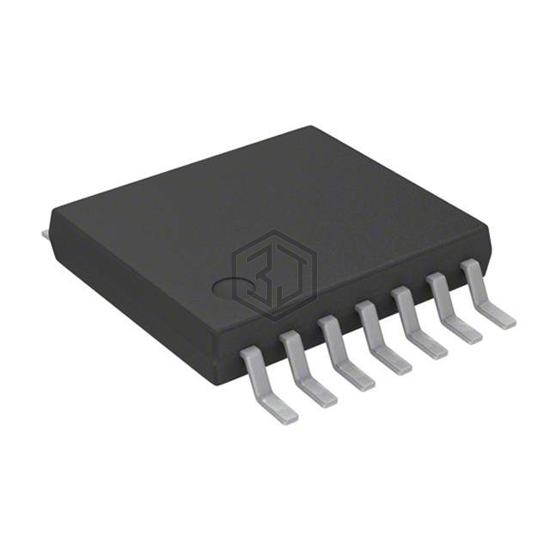

IC MCU 8BIT 3.5KB FLASH 14TSSOP
PIC16F684T-E/ST is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 3.5KB FLASH 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 14-TSSOP (0.173", 4.40mm Width).
In Stock: 6,874
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F753-E/SL | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 14SOIC | 99% | View |
| PIC16C54CT-20E/SO | Microchip Technology | IC MCU 8BIT 768B OTP 18SOIC | 94% | View |
| ATTINY3227-MF | Microchip Technology | 20MHZ, 32KB, VQFN24, IND 125C, G | 90% | View |
| AVR64EA28-E/SS | Microchip Technology | IC MCU 8BIT 64KB FLASH 28SSOP | 90% | View |
| AVR16EB32T-E/PT | Microchip Technology | 16KB RWW,2KB RAM,20MHZ,12-BIT AD | 87% | View |
| AVR32EA32T-E/PT | Microchip Technology | IC MCU 8BIT 32KB FLASH 32TQFP | 87% | View |
Submit your RFQ for PIC16F684T-E/ST and get a quote within 24 hours.
