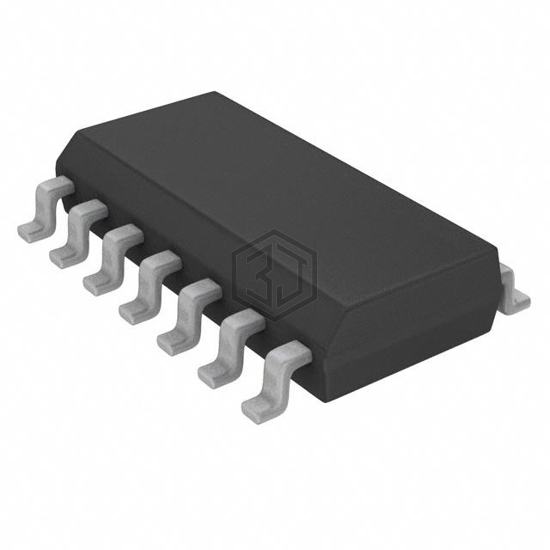

IC MCU 8BIT 1.5KB FLASH 14SOIC
PIC16F506T-I/SL is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB FLASH 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 12,223
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 11 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 67 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16LF1508-E/SO | Microchip Technology | IC MCU 8BIT 7KB FLASH 20SOIC | 93% | View |
| PIC16LF1518-E/SS | Microchip Technology | IC MCU 8BIT 28KB FLASH 28SSOP | 87% | View |
| PIC16F1516T-I/SS | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SSOP | 87% | View |
| PIC16F1512T-I/MV | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 28UQFN | 87% | View |
| PIC16LF1906-E/SO | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SOIC | 87% | View |
| ATMEGA88P-20MU | Microchip Technology | IC MCU 8BIT 8KB FLASH 32VQFN | 86% | View |
Submit your RFQ for PIC16F506T-I/SL and get a quote within 24 hours.
