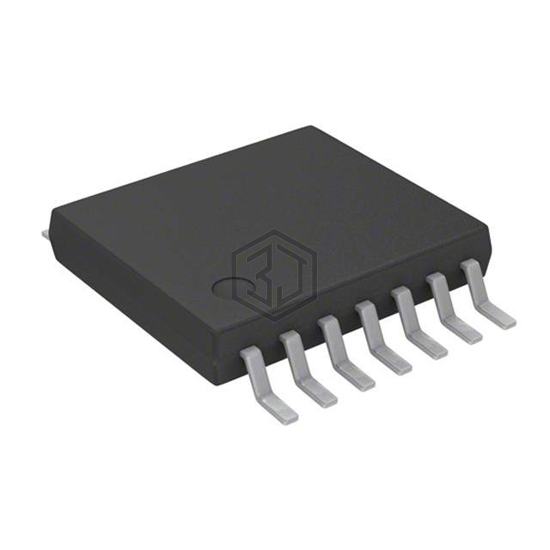

IC MCU 8BIT 1.5KB FLASH 14TSSOP
PIC16F506-I/ST is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB FLASH 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 14-TSSOP (0.173", 4.40mm Width).
In Stock: 350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 11 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 67 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F630-I/ST | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 14TSSOP | 99% | View |
| ATTINY824-SSFR | Microchip Technology | IC MCU 8BIT 8KB FLASH 14SOIC | 97% | View |
| ATMEGA88A-CCU | Atmel | IC MCU 8BIT 8KB FLASH 32UFBGA | 88% | View |
| PIC16F722AT-I/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 28QFN | 87% | View |
| PIC16LF74-I/L | Microchip Technology | IC MCU 8BIT 7KB FLASH 44PLCC | 85% | View |
| PIC16F767-I/SO | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SOIC | 79% | View |
Submit your RFQ for PIC16F506-I/ST and get a quote within 24 hours.
