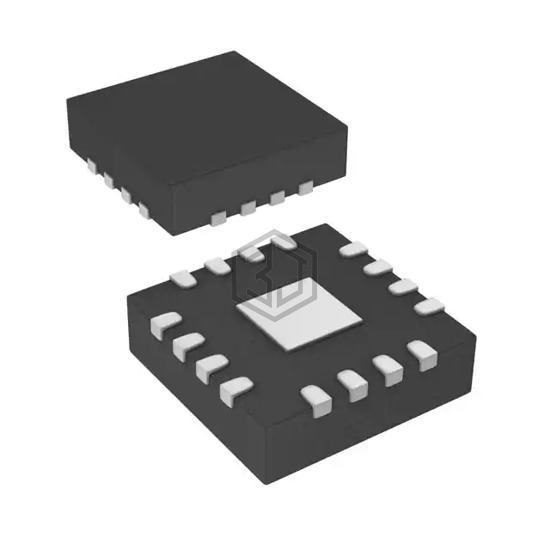

IC MCU 8BIT 1.5KB FLASH 16QFN
PIC16F506-E/MG is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB FLASH 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 16-VFQFN Exposed Pad.
In Stock: 9,174
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 11 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 67 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F676T-E/SL | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 14SOIC | 99% | View |
| PIC16F630T-E/SL | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 14SOIC | 99% | View |
| MC9S08PB8MTG | NXP USA Inc. | IC MCU 8BIT 8KB FLASH 16TSSOP | 93% | View |
| PIC16F631T-E/SS | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 20SSOP | 93% | View |
| PIC16F877A-E/L | Microchip Technology | IC MCU 8BIT 14KB FLASH 44PLCC | 75% | View |
| S9S08RN60W1MLH | Freescale Semiconductor | IC MCU 8BIT 60KB FLASH 64LQFP | 74% | View |
Submit your RFQ for PIC16F506-E/MG and get a quote within 24 hours.
