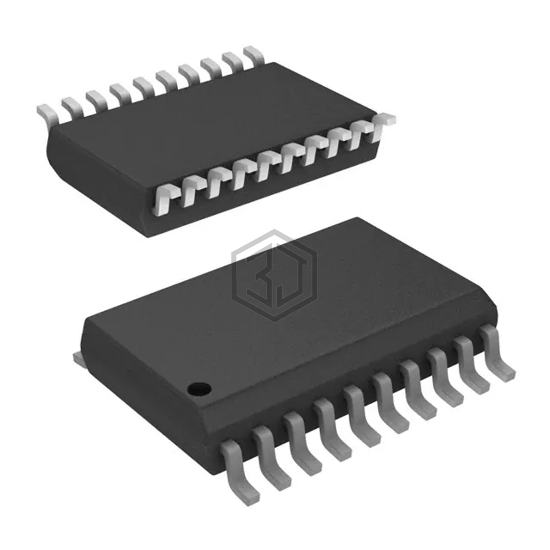

IC MCU 8BIT 14KB FLASH 20SOIC
PIC16F1509-E/SO is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 14KB FLASH 20SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 20-SOIC (0.295", 7.50mm Width).
In Stock: 5,825
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16HV785-E/SS | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SSOP | 98% | View |
| ATTINY826-SF | Microchip Technology | IC MCU 8BIT 8KB FLASH 20SOIC | 96% | View |
| PIC16F1513-E/SS | Microchip Technology | IC MCU 8BIT 7KB FLASH 28SSOP | 95% | View |
| PIC16C621A-20E/SO | Microchip Technology | IC MCU 8BIT 1.75KB OTP 18SOIC | 95% | View |
| PIC16F716-E/SO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 18SOIC | 93% | View |
| S9S08RN16W2MTG | NXP USA Inc. | IC MCU 8BIT 16KB FLASH 16TSSOP | 93% | View |
Submit your RFQ for PIC16F1509-E/SO and get a quote within 24 hours.
