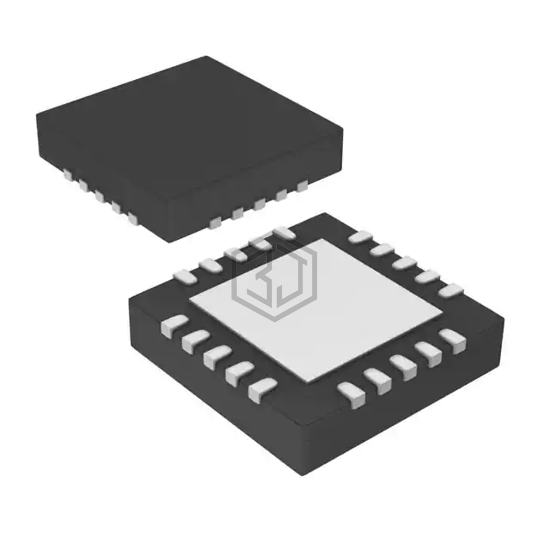

IC MCU 8BIT 14KB FLASH 20QFN
PIC16F1509-E/ML is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 14KB FLASH 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 20-VFQFN Exposed Pad.
In Stock: 7,946
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F21326GKSP#ES | Renesas Electronics America Inc | IC MCU 16BIT 32KB FLASH 20LSSOP | 96% | View |
| AVR64EA32-E/RXB | Microchip Technology | 64KB, RWW, 6KB RAM, 32P VQFN, 12 | 90% | View |
| AVR64EA32-E/PT | Microchip Technology | IC MCU 8BIT 64KB FLASH 32TQFP | 90% | View |
| R5F21348GKFP#W4Q | Renesas Electronics Corporation | IC MCU 16BIT 64KB FLASH 48LQFP | 85% | View |
| ATMEGA809-MFR | Microchip Technology | IC MCU 8BIT 8KB FLASH 48VQFN | 84% | View |
| S9S08RNA48W1MLH | NXP USA Inc. | IC MCU 8BIT 48KB FLASH 64LQFP | 82% | View |
Submit your RFQ for PIC16F1509-E/ML and get a quote within 24 hours.
