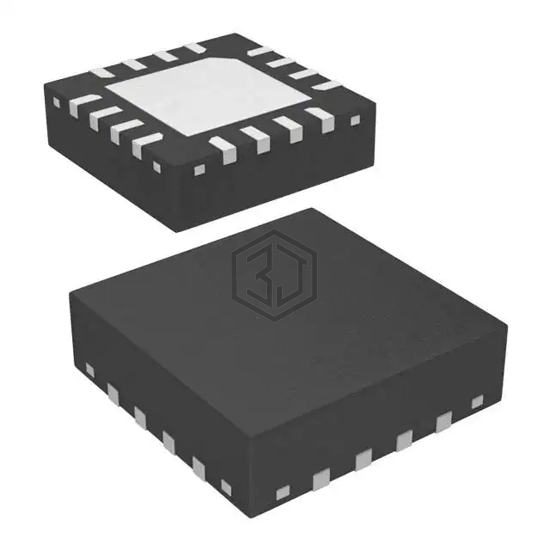

IC MCU 8BIT 3.5KB FLASH 16UQFN
PIC16F1503-I/MV is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 3.5KB FLASH 16UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 16-UFQFN Exposed Pad.
In Stock: 1,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-UQFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16C620A-20I/SO | Microchip Technology | IC MCU 8BIT 896B OTP 18SOIC | 97% | View |
| MC9S08QG8CFKE | NXP USA Inc. | IC MCU 8BIT 8KB FLASH 24QFN | 95% | View |
| PIC16LC781-I/SO | Microchip Technology | IC MCU 8BIT 1.75KB OTP 20SOIC | 95% | View |
| MC9S08PA4MTGR | NXP USA Inc. | IC MCU 8BIT 4KB FLASH 16TSSOP | 94% | View |
| Z8F1233HH020EG | Zilog | IC MCU 8BIT 12KB FLASH 20SSOP | 92% | View |
| S9S08RN32W1VLCR | NXP USA Inc. | IC MCU 8BIT 32KB FLASH 32LQFP | 86% | View |
Submit your RFQ for PIC16F1503-I/MV and get a quote within 24 hours.
