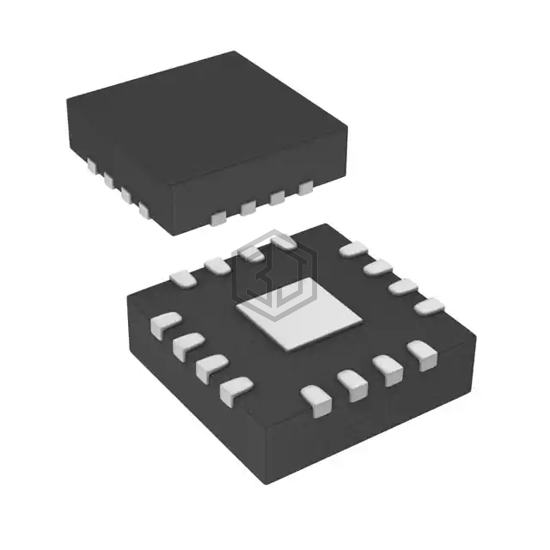

IC MCU 8BIT 3.5KB FLASH 16QFN
PIC16F1503-I/MG is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 3.5KB FLASH 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 16-VFQFN Exposed Pad.
In Stock: 6,468
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16LF1507-E/GZ | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20UQFN | 91% | View |
| MC9RS08KB4CWJ | Freescale Semiconductor | IC MCU 8BIT 4KB FLASH 20SOIC | 90% | View |
| PIC12F1501T-I/MC | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8DFN | 89% | View |
| PIC16LF1516T-I/SO | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SOIC | 85% | View |
| UPD78F1023GA-HAA-AX | Renesas Electronics America Inc | IC MCU 16BIT 96KB FLASH 48LQFP | 83% | View |
| PIC16F877T-20I/L | Microchip Technology | IC MCU 8BIT 14KB FLASH 44PLCC | 77% | View |
Submit your RFQ for PIC16F1503-I/MG and get a quote within 24 hours.
