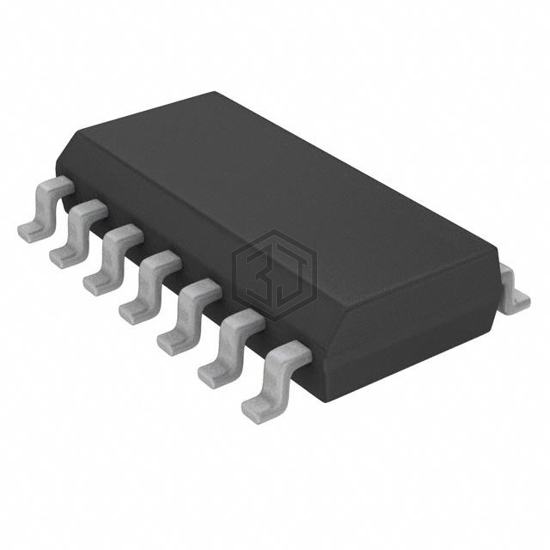

IC MCU 8BIT 3.5KB FLASH 14SOIC
PIC16F1503-E/SL is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 3.5KB FLASH 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 48,729
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16C711-20E/SO | Microchip Technology | IC MCU 8BIT 1.75KB OTP 18SOIC | 90% | View |
| PIC16F1518-E/ML | Microchip Technology | IC MCU 8BIT 28KB FLASH 28QFN | 89% | View |
| PIC16F1516-E/ML | Microchip Technology | IC MCU 8BIT 14KB FLASH 28QFN | 89% | View |
| PIC16C55A-20E/SO | Microchip Technology | IC MCU 8BIT 768B OTP 28SOIC | 88% | View |
| PIC16F872T-E/SO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 28SOIC | 83% | View |
| PIC16C662-20E/L | Microchip Technology | IC MCU 8BIT 7KB OTP 44PLCC | 77% | View |
Submit your RFQ for PIC16F1503-E/SL and get a quote within 24 hours.
