IC MCU 8BIT 3.5KB FLASH 16UQFN

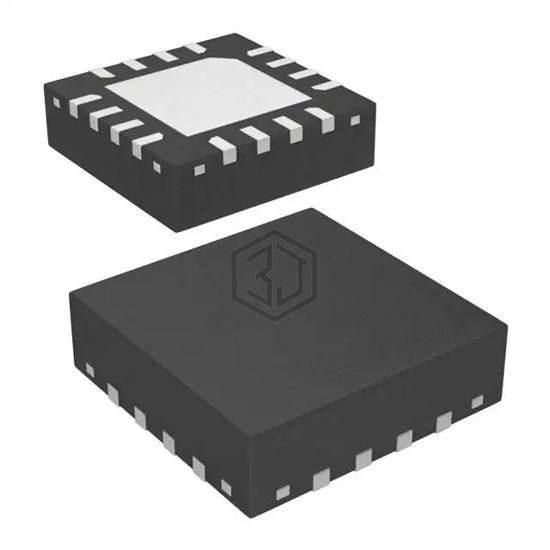

PIC16F1503-E/MV is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 3.5KB FLASH 16UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 16-UFQFN Exposed Pad.
In Stock: 6,802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-UQFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F636-E/ST | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 14TSSOP | 98% | View |
| PIC16F610-E/SL | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 14SOIC | 98% | View |
| PIC16F628AT-E/SS | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SSOP | 91% | View |
| PIC12F1501-E/SN | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8SOIC | 89% | View |
| PIC16F73T-E/SS | Microchip Technology | IC MCU 8BIT 7KB FLASH 28SSOP | 83% | View |
| Z16F3211AL20AG | Zilog | IC MCU 16BIT 32KB FLASH 100LQFP | 76% | View |
Submit your RFQ for PIC16F1503-E/MV and get a quote within 24 hours.
