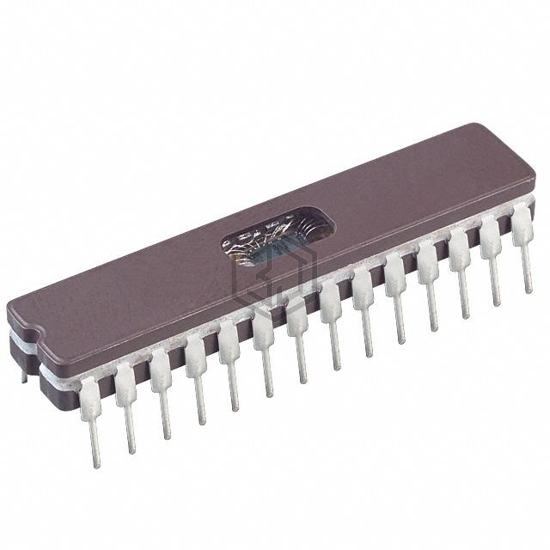

IC MCU 8B 14KB EPROM/UV 28CERDIP
PIC16C76/JW is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8B 14KB EPROM/UV 28CERDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4V ~ 6V, package / case 28-CDIP (0.300", 7.62mm) Window.
In Stock: 5,047
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| RAM Size | 368 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 6V |
| Data Converters | A/D 5x8b |
| Oscillator Type | External |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.300", 7.62mm) Window |
| Supplier Device Package | 28-CerDip |
PIC16C76/JW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16C74B-20E/P | Microchip Technology | IC MCU 8BIT 7KB OTP 40DIP | 94% | View |
| Z8F0412PJ020SG | Zilog | IC MCU 8BIT 4KB FLASH 28DIP | 93% | View |
| PIC16F1516-I/SP | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SPDIP | 91% | View |
| PIC16C54-HSI/P | Microchip Technology | IC MCU 8BIT 768B OTP 18DIP | 90% | View |
| PIC16F1509-I/P | Microchip Technology | IC MCU 8BIT 14KB FLASH 20DIP | 89% | View |
| Z8F011APB020EG | Zilog | IC MCU 8BIT 1KB FLASH 8DIP | 77% | View |
Submit your RFQ for PIC16C76/JW and get a quote within 24 hours.
