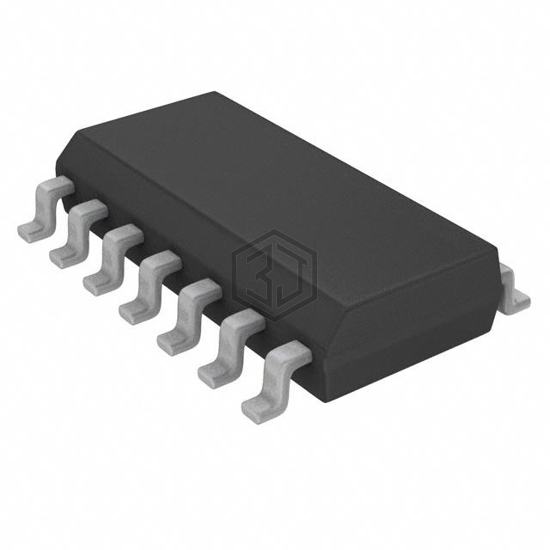

IC MCU 8BIT 1.5KB OTP 14SOIC
PIC16C505T-20/SL is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB OTP 14SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 5,762
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 11 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 72 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
