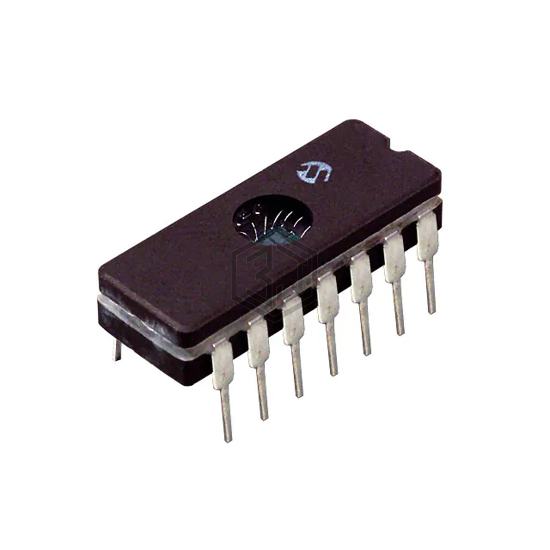

IC MCU 8BIT 1.5KB EPROM 14CDIP
PIC16C505/JW is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB EPROM 14CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 14-CDIP (0.300", 7.62mm) Window.
In Stock: 7,083
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 11 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| RAM Size | 72 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) Window |
| Supplier Device Package | 14-CDIP |
PIC16C505/JW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| Z8F1232PH020EG | Zilog | IC MCU 8BIT 12KB FLASH 20DIP | 93% | View |
| ATTINY24A-PU | Microchip Technology | IC MCU 8BIT 2KB FLASH 14DIP | 92% | View |
| Z8F021APB020EG | Zilog | IC MCU 8BIT 2KB FLASH 8DIP | 90% | View |
| Z8F0430PJ020SG | Zilog | IC MCU 8BIT 4KB FLASH 28DIP | 88% | View |
| PIC16F916-E/SP | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SPDIP | 84% | View |
| PIC16F777-I/P | Microchip Technology | IC MCU 8BIT 14KB FLASH 40DIP | 80% | View |
Submit your RFQ for PIC16C505/JW and get a quote within 24 hours.
