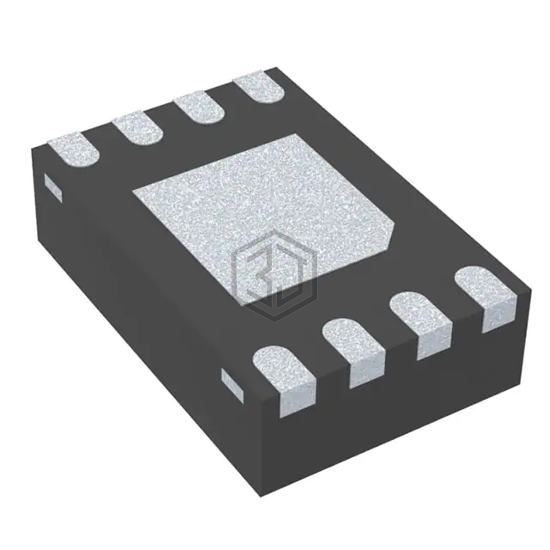

IC MCU 8BIT 1.5KB FLASH 8DFN
PIC12F509-E/MC is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB FLASH 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2V ~ 5.5V, package / case 8-VFDFN Exposed Pad.
In Stock: 9,499
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 4MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 5 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 41 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC12C672-04E/SM | Microchip Technology | IC MCU 8BIT 3.5KB OTP 8SOIJ | 94% | View |
| PIC10F206T-E/OT | Microchip Technology | IC MCU 8BIT 768B FLASH SOT23-6 | 93% | View |
| PIC16C620A-04E/SO | Microchip Technology | IC MCU 8BIT 896B OTP 18SOIC | 84% | View |
| PIC16C558-04E/SS | Microchip Technology | IC MCU 8BIT 3.5KB OTP 20SSOP | 81% | View |
| PIC16F628-04E/SS | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SSOP | 78% | View |
| PIC16C715T-04E/SS | Microchip Technology | IC MCU 8BIT 3.5KB OTP 20SSOP | 77% | View |
Submit your RFQ for PIC12F509-E/MC and get a quote within 24 hours.
