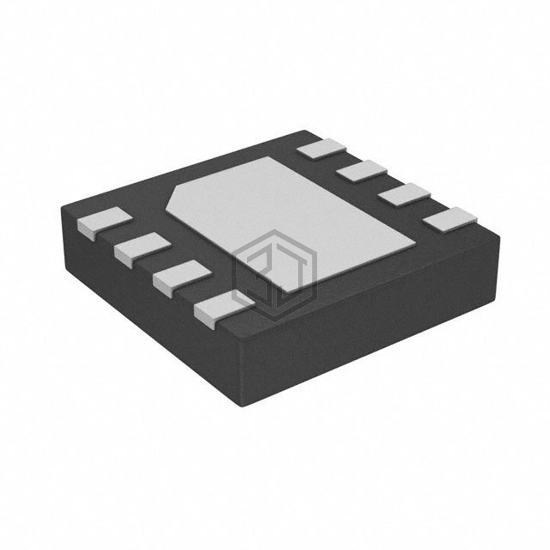

IC MCU 8BIT 1.75KB FLASH 8DFN
PIC12F1501-E/MF is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.75KB FLASH 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 8-VDFN Exposed Pad.
In Stock: 6,793
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 5 |
| Program Memory Size | 1.75KB (1K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16LF1503-E/MV | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 16UQFN | 86% | View |
| ATTINY84A-MF | Microchip Technology | IC MCU 8BIT 8KB FLASH 20QFN | 85% | View |
| PIC16F527-E/ML | Microchip Technology | IC MCU 8BIT 1.5KB FLASH 20QFN | 81% | View |
| PIC16F648AT-E/ML | Microchip Technology | IC MCU 8BIT 7KB FLASH 28QFN | 80% | View |
| PIC16F628A-E/SS | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SSOP | 80% | View |
| PIC16F1526-E/MR | Microchip Technology | IC MCU 8BIT 14KB FLASH 64QFN | 78% | View |
Submit your RFQ for PIC12F1501-E/MF and get a quote within 24 hours.
