IC MCU 8BIT 1.5KB EPROM/UV 8CDIP

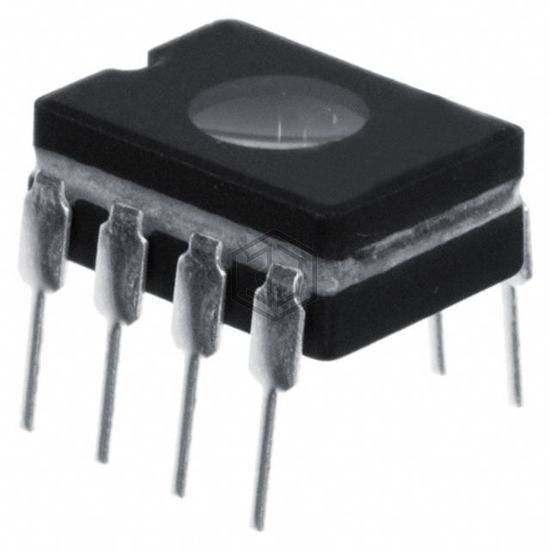

PIC12C509/JW is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 1.5KB EPROM/UV 8CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 2.5V ~ 5.5V, package / case 8-CDIP (0.300", 7.62mm) Window.
In Stock: 1,150
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 4MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 5 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| RAM Size | 41 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) Window |
| Supplier Device Package | 8-CDIP |
PIC12C509/JW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC12C672-04E/P | Microchip Technology | IC MCU 8BIT 3.5KB OTP 8DIP | 97% | View |
| PIC16C54-XT/P | Microchip Technology | IC MCU 8BIT 768B OTP 18DIP | 85% | View |
| PIC16LF84A-04I/P | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 18DIP | 84% | View |
| PIC16LC71-04I/P | Microchip Technology | IC MCU 8BIT 1.75KB OTP 18DIP | 84% | View |
| PIC16C622-04E/P | Microchip Technology | IC MCU 8BIT 3.5KB OTP 18DIP | 84% | View |
| PIC16F627-04/P | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 18DIP | 81% | View |
Submit your RFQ for PIC12C509/JW and get a quote within 24 hours.
