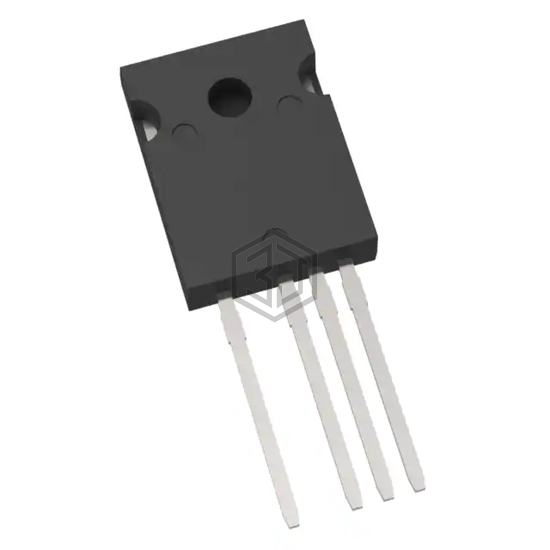

TRANS SJT 1700V TO247-4
MSC750SMA170B4 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. TRANS SJT 1700V TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1700 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 940mOhm @ 2.5A, 20V |
| Vgs(th) (Max) @ Id | 3.25V @ 100µA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 20 V |
| Vgs (Max) | +23V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 184 pF @ 1360 V |
| FET Feature | - |
| Power Dissipation (Max) | 68W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4 |
| Package / Case | TO-247-4 |
Submit your RFQ for MSC750SMA170B4 and get a quote within 24 hours.
