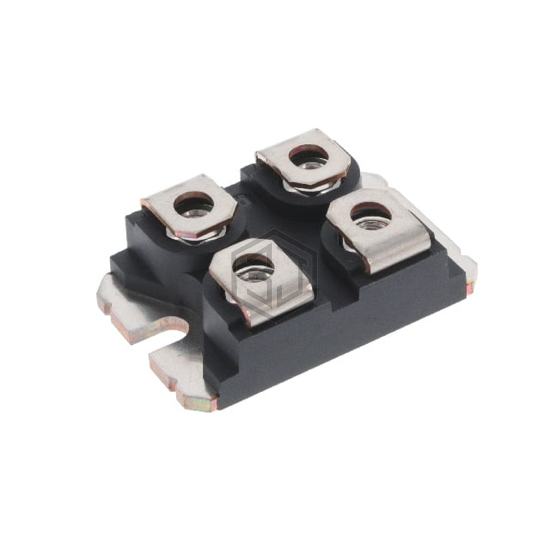

SICFET N-CH 700V 124A SOT227
MSC100SM70JCU2 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. SICFET N-CH 700V 124A SOT227. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 124A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 40A, 20V |
| Vgs(th) (Max) @ Id | 2.4V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 215 nC @ 20 V |
| Vgs (Max) | +25V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4500 pF @ 700 V |
| FET Feature | - |
| Power Dissipation (Max) | 365W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227 (ISOTOP®) |
| Package / Case | SOT-227-4, miniBLOC |
Submit your RFQ for MSC100SM70JCU2 and get a quote within 24 hours.
