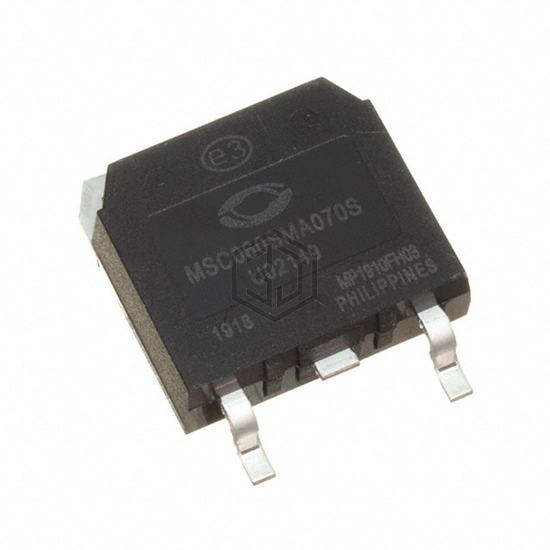

SICFET N-CH 700V 37A D3PAK
MSC060SMA070S is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. SICFET N-CH 700V 37A D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 20A, 20V |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 20 V |
| Vgs (Max) | +23V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1175 pF @ 700 V |
| FET Feature | - |
| Power Dissipation (Max) | 130W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D3PAK |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
Submit your RFQ for MSC060SMA070S and get a quote within 24 hours.
