MOSFET SIC 1700V 35 MOHM TO-268

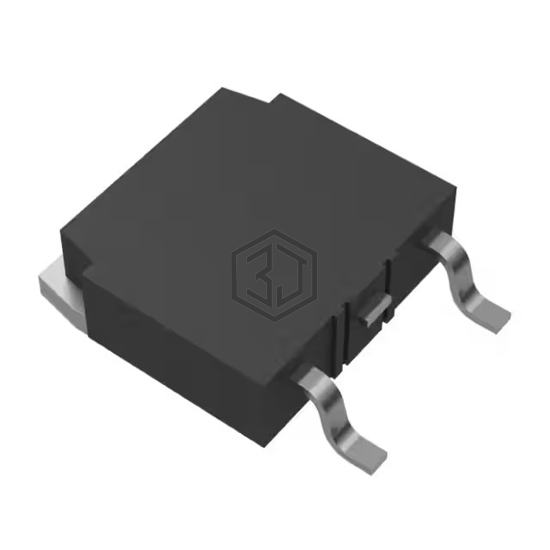

MSC035SMA170S is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET SIC 1700V 35 MOHM TO-268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1700 V |
| Current - Continuous Drain (Id) @ 25°C | 59A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 30A, 20V |
| Vgs(th) (Max) @ Id | 3.25V @ 2.5mA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | 178 nC @ 20 V |
| Vgs (Max) | +23V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3300 pF @ 1000 V |
| FET Feature | - |
| Power Dissipation (Max) | 278W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D3PAK |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
Submit your RFQ for MSC035SMA170S and get a quote within 24 hours.
