SWITCHER BUCK REGULATOR

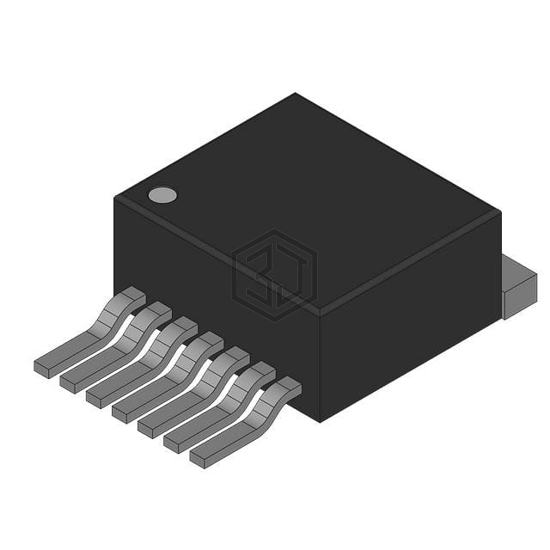

MIC4685BR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Microchip Technology. SWITCHER BUCK REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SPak-7 (7 leads + Tab), current - output 3A.
In Stock: 4,736
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 1.235V |
| Voltage - Output (Max) | 28.2V |
| Current - Output | 3A |
| Frequency - Switching | 200kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SPak-7 (7 leads + Tab) |
| Supplier Device Package | S-PAK-7 |
MIC4685BR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3971EMSE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJ 1.2A 10MSOP | 81% | View |
| LMR14020QDPRRQ1 | Texas Instruments | IC REG BUCK ADJUSTABLE 2A 10WSON | 80% | View |
| LT3970HMS#TRPBF | Analog Devices Inc. | IC REG BUCK ADJ 535MA 10MSOP | 78% | View |
| MP4470AGL-Z | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 5A 20QFN | 75% | View |
| MP9447GL-Z | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 5A 20QFN | 75% | View |
| LTC3646HMSE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJUSTABLE 1A 16MSOP | 70% | View |
Submit your RFQ for MIC4685BR and get a quote within 24 hours.
