IC GATE DRVR HALF-BRIDGE 10TDFN

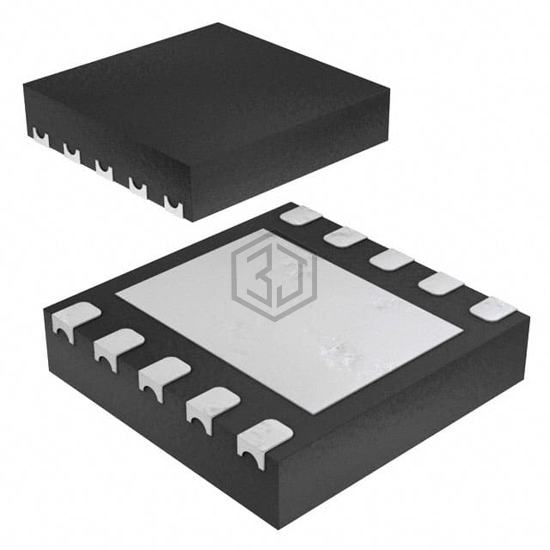

MIC4605-1YMT-T5 is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HALF-BRIDGE 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5.5V ~ 16V, package / case 10-UFDFN Exposed Pad.
In Stock: 2,809
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 108 V |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (2.5x2.5) |
MIC4605-1YMT-T5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC4605-1YM | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| MIC4605-2YMT-T5 | Microchip Technology | IC GATE DRVR HALF-BRIDGE 10TDFN | 100% | View |
| LM5109ASD/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 93% | View |
| MCZ33883EGR2 | Freescale Semiconductor | FULL BRIDGE BASED MOSFET DRIVER, | 89% | View |
| IR2011STRPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 80% | View |
| HIP2104FRAANZ-T7A | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 12DFN | 75% | View |
Submit your RFQ for MIC4605-1YMT-T5 and get a quote within 24 hours.
