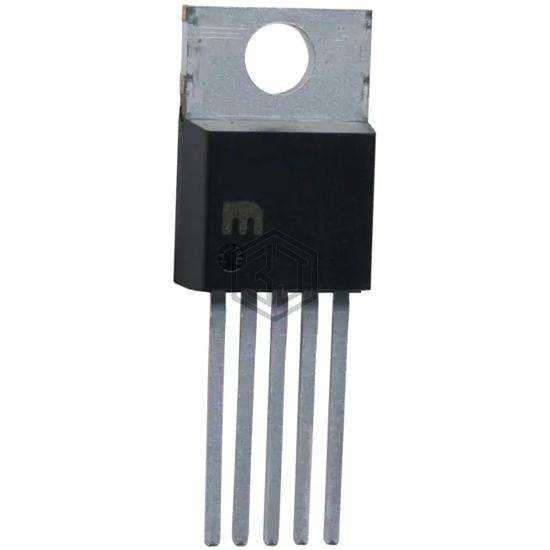

IC GATE DRVR LOW-SIDE TO220-5
MIC4420CT is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE TO220-5. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case TO-220-5.
In Stock: 5,168
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 13ns |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
MIC4420CT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC4420ZN | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 100% | View |
| MCP1407-E/AT | Microchip Technology | IC GATE DRVR LOW-SIDE TO220-5 | 94% | View |
| MCP1407-E/P | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 94% | View |
| MCP1406-E/AT | Microchip Technology | IC GATE DRVR LOW-SIDE TO220-5 | 94% | View |
| 5962-8877003PA | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8CERDIP | 91% | View |
| MAX4420MJA/883B | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8CDIP | 91% | View |
