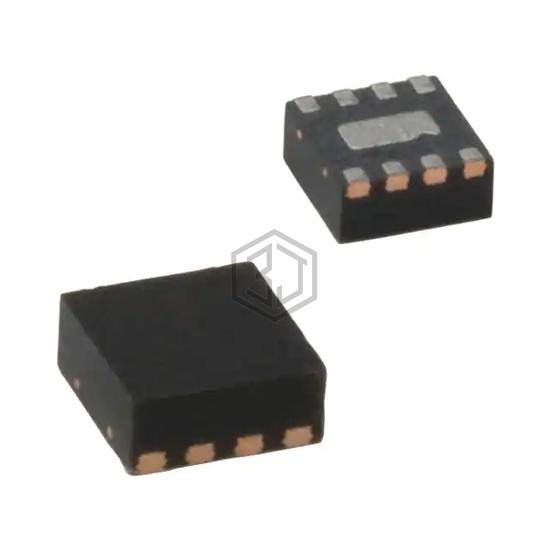

IC GATE DRVR LOW-SIDE 8MLF
MIC4120YML-TR is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8MLF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 20V, package / case 8-VFDFN Exposed Pad, 8-MLF®.
In Stock: 2,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 13ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF® |
| Supplier Device Package | 8-MLF® (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC4129YME | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| MIC4420YM-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| MCP14A0602-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| MCP1407T-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 94% | View |
| TC4420EOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 91% | View |
| TC4420EMF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 91% | View |
Submit your RFQ for MIC4120YML-TR and get a quote within 24 hours.
