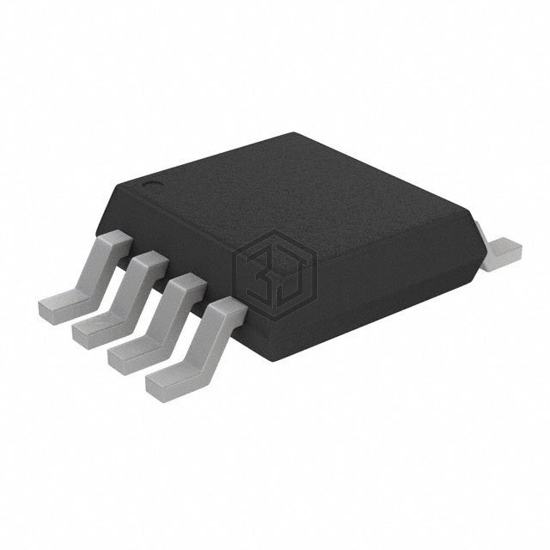

IC REG CTRLR MULT TOPOLOGY 8MSOP
MIC3809BMM is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR MULT TOPOLOGY 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.1V ~ 14V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 4,768
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.1V ~ 14V |
| Frequency - Switching | 200kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
MIC3809BMM is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX8540EEE+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16QSOP | 93% | View |
| MIC3839BMM | Microchip Technology | IC REG CTRLR MULT TOP 10MSOP | 92% | View |
| LM5035ASQX/NOPB | Texas Instruments | IC REG CTRLR HALF-BRIDGE 24WQFN | 87% | View |
| LM5025BSDX | Texas Instruments | IC REG CTRLR FWRD CONV 16WSON | 85% | View |
| LM5026SDX | Texas Instruments | IC REG CTRLR FWRD CONV 16WSON | 85% | View |
| LM5037MT/NOPB | Texas Instruments | DUAL SWITCHING CONTROLLER, CURRE | 79% | View |
Submit your RFQ for MIC3809BMM and get a quote within 24 hours.
