LOW VOLTAGE PWM CONTROL IC

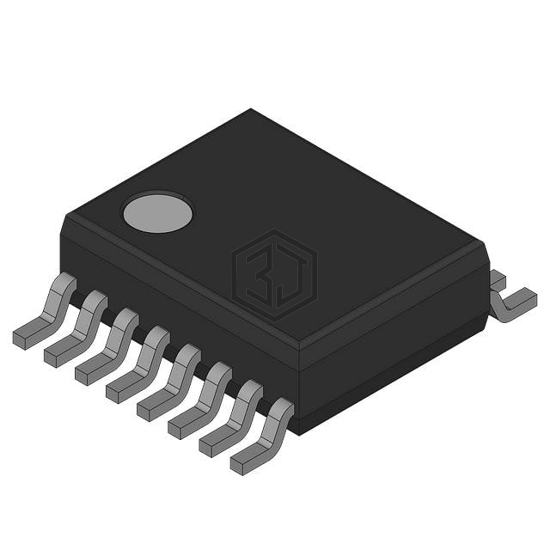

MIC2186BQS is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. LOW VOLTAGE PWM CONTROL IC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.9V ~ 14V, package / case 16-SSOP (0.154", 3.90mm Width).
In Stock: 14,876
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.9V ~ 14V |
| Frequency - Switching | 100kHz, 200kHz, 400kHz |
| Duty Cycle (Max) | 85% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
MIC2186BQS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC110301ECTTR | Microchip Technology | IC REG CTRLR BOOST SOT23A-5 | 96% | View |
| LTC7804HMSE#PBF | Analog Devices Inc. | LOW IQ SYNCH BOOST CONTROLLER | 95% | View |
| LTC7804IUD#TRPBF | Analog Devices Inc. | LOW IQ SYNCH BOOST CONTROLLER | 95% | View |
| RN5RK501B-TR-FE | Nisshinbo Micro Devices Inc. | DCDC CONVERTER 8V INPUT VFM STEP | 89% | View |
| S-8352C56UA-K7PT2U | ABLIC Inc. | IC REG CTRLR BOOST SOT89-3 | 87% | View |
| S-8357B60MC-NJTT2U | ABLIC Inc. | IC REG CTRLR BOOST SOT23-5 | 87% | View |
Submit your RFQ for MIC2186BQS and get a quote within 24 hours.
