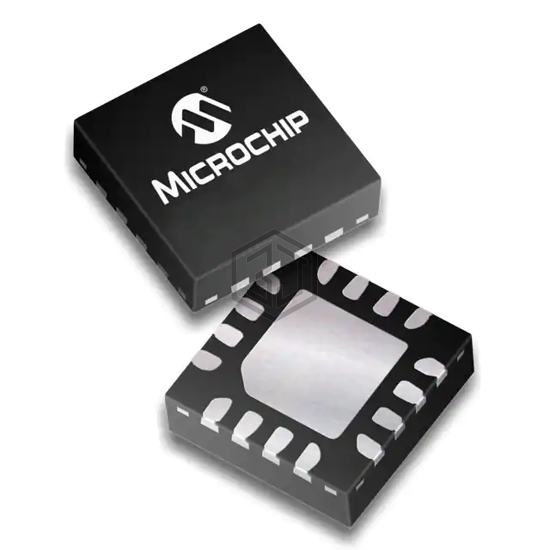

IC GATE DRVR HALF-BRIDGE 16QFN
MD1811K6-G is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HALF-BRIDGE 16QFN. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 125°C (TJ), voltage - supply 5V ~ 12V, package / case 16-VQFN Exposed Pad.
In Stock: 2,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 5V ~ 12V |
| Logic Voltage - VIL, VIH | 0.3V, 1.7V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6ns, 6ns |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EL7222CSZ-T7 | Renesas Electronics America Inc | IC GATE DRVR LOW-SIDE 8SOIC | 75% | View |
| MCP14E6T-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 69% | View |
| MCP14E8-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 69% | View |
| MIC4104YM-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 66% | View |
| HIP2101IBZT | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8SOIC | 66% | View |
| ISL2101AAR3Z | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 9DFN | 59% | View |
Submit your RFQ for MD1811K6-G and get a quote within 24 hours.
