MOSFET N-CH 25V 48A 8PDFN

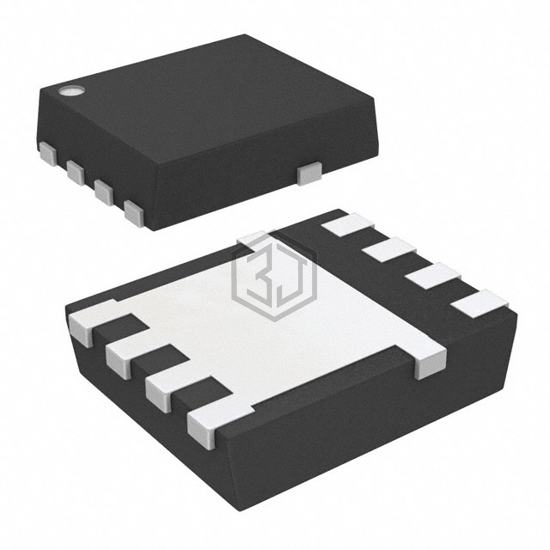

MCP87090T-U/LC is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 25V 48A 8PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 2,321
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 48A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 10V |
| Vgs(th) (Max) @ Id | 1.7V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V |
| Vgs (Max) | +10V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 580 pF @ 12.5 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PDFN (3.3x3.3) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for MCP87090T-U/LC and get a quote within 24 hours.
