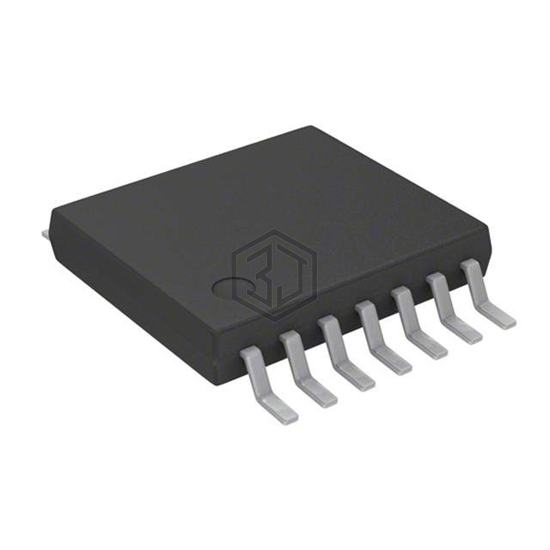

QUAD 1.8V OPEN DRAIN COMPARATOR
MCP6569-E/STVAO is a Linear - Comparators manufactured by Microchip Technology. QUAD 1.8V OPEN DRAIN COMPARATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-TSSOP (0.173", 4.40mm Width), output type CMOS, Open-Drain.
In Stock: 7,154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 4 |
| Output Type | CMOS, Open-Drain |
| Voltage - Supply, Single/Dual (±) | 1.8V ~ 5.5V |
| Voltage - Input Offset (Max) | 10mV @ 5.5V |
| Current - Input Bias (Max) | 1pA @ 5.5V |
| Current - Output (Typ) | 50mA |
| Current - Quiescent (Max) | 130µA |
| CMRR, PSRR (Typ) | 66dB CMRR, 70dB PSRR |
| Propagation Delay (Max) | 80ns |
| Hysteresis | 5mV |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP6564-E/ST | Microchip Technology | IC COMP QUAD 1.8V PP 14-TSSOP | 100% | View |
| MCP6564-E/STVAO | Microchip Technology | QUAD 1.8V PUSH/PULL COMPARATOR E | 100% | View |
| MCP6562-E/MS | Microchip Technology | IC COMP DUAL 1.8V PP 8-MSOP | 96% | View |
| MCP6567T-E/MS | Microchip Technology | IC COMP DUAL 1.8V OD 8-MSOP | 96% | View |
| MCP6567-E/MSVAO | Microchip Technology | DUAL 1.8V OPEN DRAIN COMPARATOR | 96% | View |
| MCP6566T-E/LTVAO | Microchip Technology | SINGLE 1.8V OPEN DRAIN COMPARATO | 93% | View |
Submit your RFQ for MCP6569-E/STVAO and get a quote within 24 hours.
