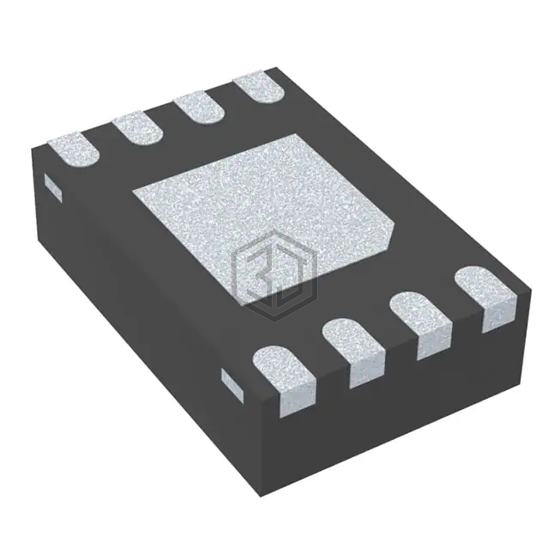

IC DAC 10BIT V-OUT 8DFN
MCP4811-E/MC is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Microchip Technology. IC DAC 10BIT V-OUT 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 8-VFDFN Exposed Pad.
In Stock: 5,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 4.5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±0.2 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP4811T-E/SN | Microchip Technology | IC DAC 10BIT V-OUT 8SOIC | 100% | View |
| MCP4811T-E/MS | Microchip Technology | IC DAC 10BIT V-OUT 8MSOP | 100% | View |
| MCP4811-E/SN | Microchip Technology | IC DAC 10BIT V-OUT 8SOIC | 100% | View |
| MCP4821-E/MC | Microchip Technology | IC DAC 12BIT V-OUT 8DFN | 98% | View |
| MCP4801-E/SN | Microchip Technology | IC DAC 8BIT V-OUT 8SOIC | 98% | View |
| MCP4801T-E/MC | Microchip Technology | IC DAC 8BIT V-OUT 8DFN | 98% | View |
Submit your RFQ for MCP4811-E/MC and get a quote within 24 hours.
