DIGITALLY ENHANCED POWER, VOLTAG

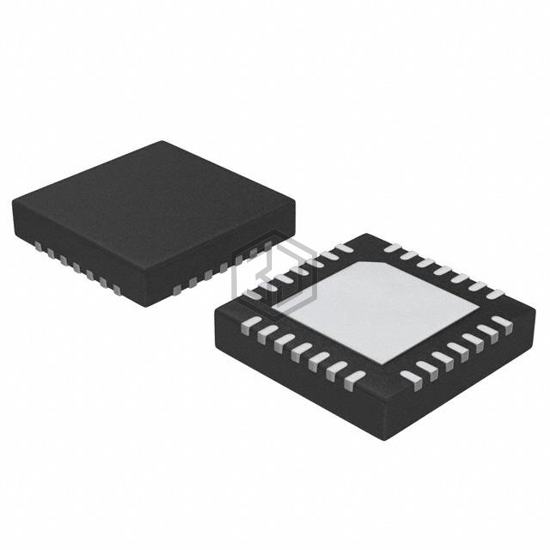

MCP19125-E/MQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. DIGITALLY ENHANCED POWER, VOLTAG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.75V ~ 5.5V, package / case 28-VFQFN Exposed Pad.
In Stock: 146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM Signal |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Cuk, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.5V |
| Frequency - Switching | 31.25kHz ~ 2MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | I²C |
| Control Features | Dead Time Control, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP19125T-E/MQ | Microchip Technology | IC REG CTRLR | 100% | View |
| MCP19124T-E/MJ | Microchip Technology | IC REG CTRLR | 100% | View |
| MCP19124-E/MJ | Microchip Technology | DIGITALLY ENHANCED POWER, VOLTAG | 100% | View |
| MCP19215T-E/S8 | Microchip Technology | IC REG CNTRL MULTI I2C 32QFN | 92% | View |
| MCP19214T-E/MQ | Microchip Technology | IC REG CNTRL MULTI I2C 28QFN | 92% | View |
| MCP19215-E/S8 | Microchip Technology | IC REG CNTRL MULTI I2C 28VFQFN | 92% | View |
Submit your RFQ for MCP19125-E/MQ and get a quote within 24 hours.
