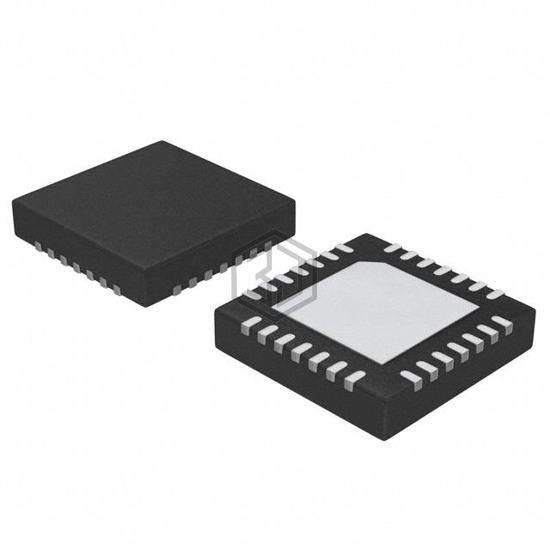

IC PWM CTLR SYNC LOW SIDE 28QFN
MCP19117T-E/MQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC PWM CTLR SYNC LOW SIDE 28QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 42V, package / case 28-VFQFN Exposed Pad.
In Stock: 7,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Cuk, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 42V |
| Frequency - Switching | 31.25kHz ~ 2MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | I²C |
| Control Features | EN |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP19114T-E/MJ | Microchip Technology | IC REG CTRLR MULT TOP I2C 24QFN | 100% | View |
| MCP19115-E/MQ | Microchip Technology | IC REG CTRLR MULT TOP I2C 28QFN | 100% | View |
| MCP19115T-E/MQ | Microchip Technology | IC REG CTRLR MULT TOP I2C 28QFN | 100% | View |
| MCP19116T-E/MJ | Microchip Technology | IC PWM CTLR SYNC LOW SIDE 24QFN | 100% | View |
| MCP19117-E/MQ | Microchip Technology | IC REG CTRLR MULTI CONFIG 28QFN | 100% | View |
| MCP19114T-E/MQ | Microchip Technology | IC REG CTRLR MULT TOP I2C 28QFN | 100% | View |
Submit your RFQ for MCP19117T-E/MQ and get a quote within 24 hours.
