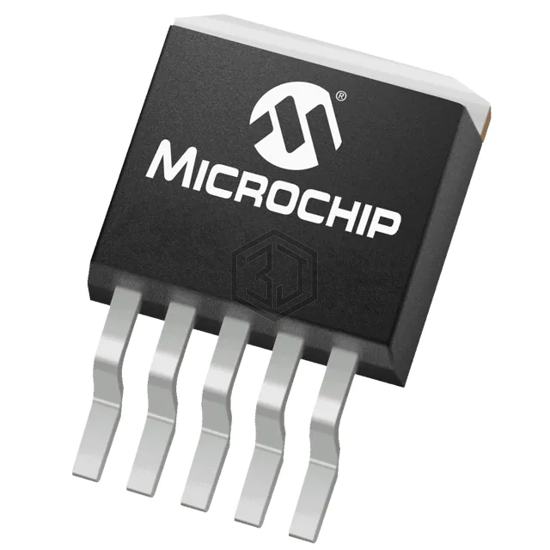

IC REG LIN POS ADJ 500MA 5DDPAK
MCP1825-ADJE/ET is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LIN POS ADJ 500MA 5DDPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 500mA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | 5-DDPAK |
Submit your RFQ for MCP1825-ADJE/ET and get a quote within 24 hours.
