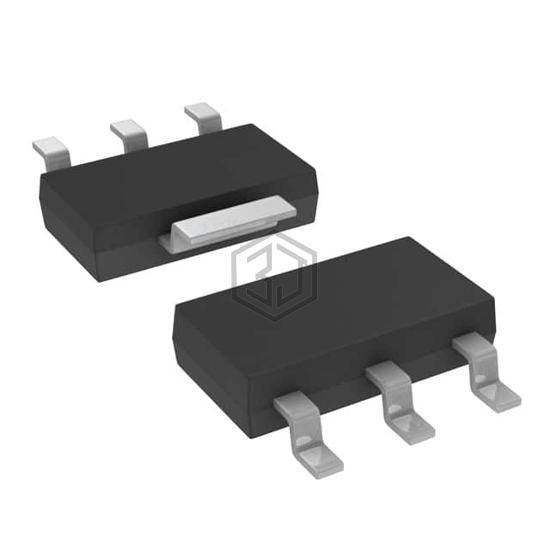

IC REG LINEAR 5V 80MA SOT223-3
MCP1799T-5002H/DB is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 5V 80MA SOT223-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA, current - supply (max) 110 µA.
In Stock: 15,503
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.1V @ 80mA |
| Current - Output | 80mA |
| Current - Quiescent (Iq) | 45 µA |
| Current - Supply (Max) | 110 µA |
| PSRR | 70dB ~ 35dB (100Hz ~ 100kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP1799T-5002H/TT | Microchip Technology | IC REG LINEAR 5V 80MA SOT23-3 | 100% | View |
| MCP1799-5002H/DB | Microchip Technology | IC REG LINEAR 5V 80MA SOT223-3 | 100% | View |
| MCP1799T-5002H/DBVAO | Microchip Technology | IC REG LINEAR 5V 80MA SOT223-3 | 92% | View |
| MCP1799T-5002H/TTVAO | Microchip Technology | IC REG LINEAR 5V 80MA SOT23-3 | 92% | View |
| MCP1799T-3302H/TT | Microchip Technology | IC REG LINEAR 3.3V 80MA SOT23-3 | 88% | View |
| MCP1799T-3302H/DB | Microchip Technology | IC REG LINEAR 3.3V 80MA SOT223-3 | 88% | View |
Submit your RFQ for MCP1799T-5002H/DB and get a quote within 24 hours.
