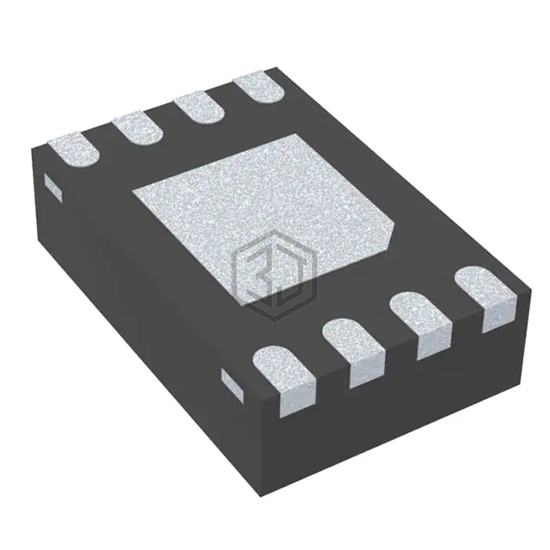

IC REG LINEAR 5V 300MA 8DFN
MCP1755-5002E/MC is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 5V 300MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFDFN Exposed Pad, current - supply (max) 400 µA.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 400 µA |
| PSRR | 80dB (1kHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP1755ST-5002E/MC | Microchip Technology | IC REG LINEAR 5V 300MA 8DFN | 100% | View |
| MCP1755S-5002E/MC | Microchip Technology | IC REG LINEAR 5V 300MA 8DFN | 100% | View |
| MCP1755T-5002E/MC | Microchip Technology | IC REG LINEAR 5V 300MA 8DFN | 100% | View |
| MCP1755T-5002E/OT | Microchip Technology | IC REG LINEAR 5V 300MA SOT23-5 | 100% | View |
| MCP1755T-5002E/DC | Microchip Technology | IC REG LINEAR 5V 300MA SOT223-5 | 100% | View |
| MCP1755S-3302E/DB | Microchip Technology | IC REG LIN 3.3V 300MA SOT223-3 | 88% | View |
Submit your RFQ for MCP1755-5002E/MC and get a quote within 24 hours.
