IC GATE DRVR 12A SGL INVERTING

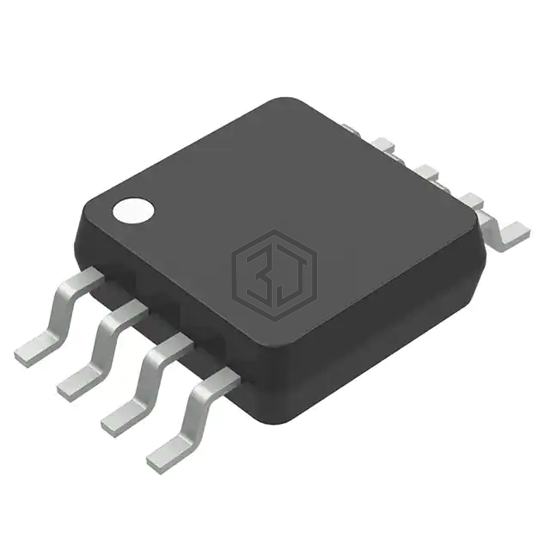

MCP14A1201-E/MSVAO is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR 12A SGL INVERTING. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 1,238
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 12A, 12A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 25ns, 25ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A1201-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| MCP14A1201-E/MS | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 100% | View |
| MCP14A1202T-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| MCP14A1202-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| MCP14A1202-E/MSVAO | Microchip Technology | IC GATE DRVR 12A SGL NON-INVERT | 100% | View |
| MCP14A1202T-E/MNYVAO | Microchip Technology | 12.0A SINGLE MOSFET DRIVER | 100% | View |
Submit your RFQ for MCP14A1201-E/MSVAO and get a quote within 24 hours.
