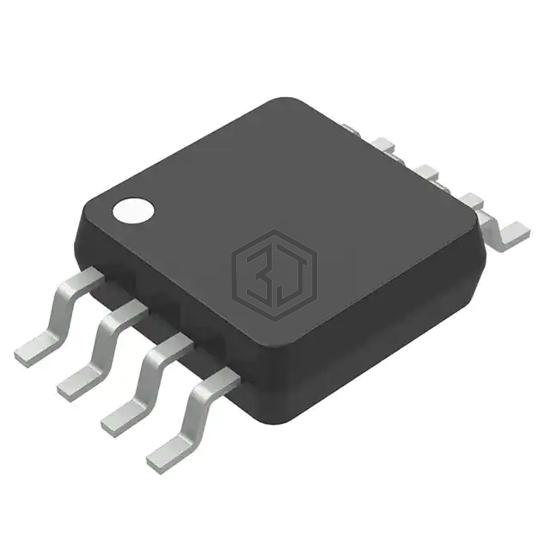

IC GATE DRVR HI/LOW SIDE 8MSOP
MCP14A0901-E/MS is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 1,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 9A, 9A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 22ns, 22ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A0902T-E/MS | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8MSOP | 100% | View |
| MCP14A0901T-E/SN | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| MCP14A0902-E/MS | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8MSOP | 100% | View |
| MCP14A0901-E/SN | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| MCP14A0901T-E/MNY | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8TDFN | 100% | View |
| MCP14A0902T-E/SN | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
Submit your RFQ for MCP14A0901-E/MS and get a quote within 24 hours.
