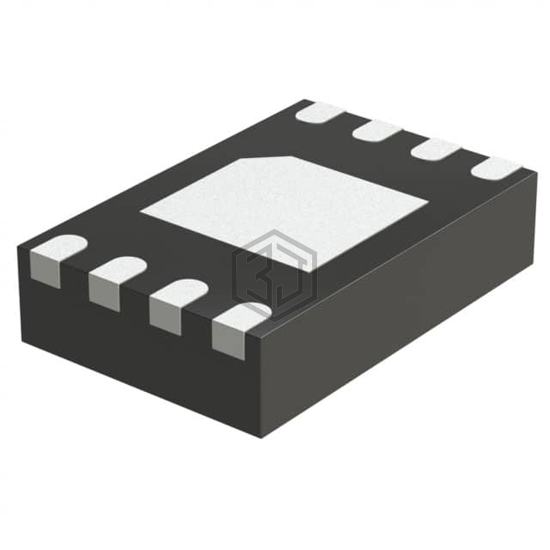

IC GATE DRVR LOW-SIDE 8TDFN
MCP14A0455-E/MNY is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.
In Stock: 477
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 4.5A, 4.5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4423AVOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| TC4424AVOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 100% | View |
| TC4424AVMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 100% | View |
| MCP14A0455T-E/MS | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 100% | View |
| TC4425AVMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 100% | View |
| TC4424AVMF713-VAO | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 100% | View |
Submit your RFQ for MCP14A0455-E/MNY and get a quote within 24 hours.
