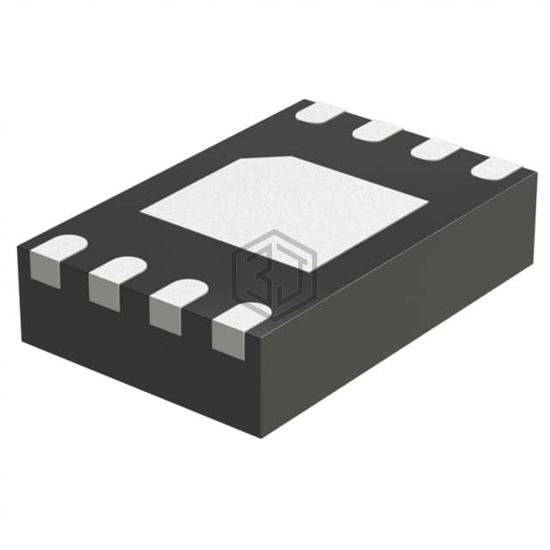

IC GATE DRVR HI/LOW SIDE 8TDFN
MCP14A0303-E/MNY is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.
In Stock: 430
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A0305T-E/SN | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| FAN3268TMX-F085 | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| MPQ1922GV-AEC1-P | Monolithic Power Systems Inc. | 100V, 3A, HALF-BRIDGE PRE-DRIVER | 100% | View |
| LM5111-2MX/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 95% | View |
| LM5111-4M/NOPB | National Semiconductor | LM5111 DUAL 5A COMPOUND GATE DRI | 95% | View |
| LM5111-3M/NOPB | Texas Instruments | BUFFER/INVERTER BASED PERIPHERAL | 95% | View |
Submit your RFQ for MCP14A0303-E/MNY and get a quote within 24 hours.
