IC GATE DRVR HI/LOW SIDE 8WDFN

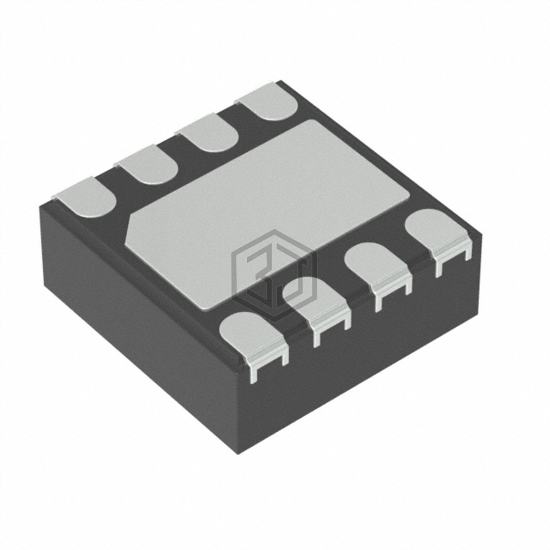

MCP14A0302T-E/KBA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8WDFN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.
In Stock: 1,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 13ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WDFN (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A0301T-E/KBA | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8WDFN | 100% | View |
| LMG1025QDEERQ1 | Texas Instruments | LOW-SIDE GAN DRIVER AUTO 5V 5/7A | 73% | View |
| NCV51705MNTWG | onsemi | IC GATE DRVR LOW-SIDE 24QFN | 70% | View |
| LMG1025QDEETQ1 | Texas Instruments | IC MOSFET GAN DRIVER 7A/5A 6-WSO | 59% | View |
| TLF11251LDXUMA1 | Infineon Technologies | TLF11251LDXUMA1 | 57% | View |
| RRP63175-NH0 | Renesas Electronics Corporation | RRP63175-NH0 | 56% | View |
Submit your RFQ for MCP14A0302T-E/KBA and get a quote within 24 hours.
