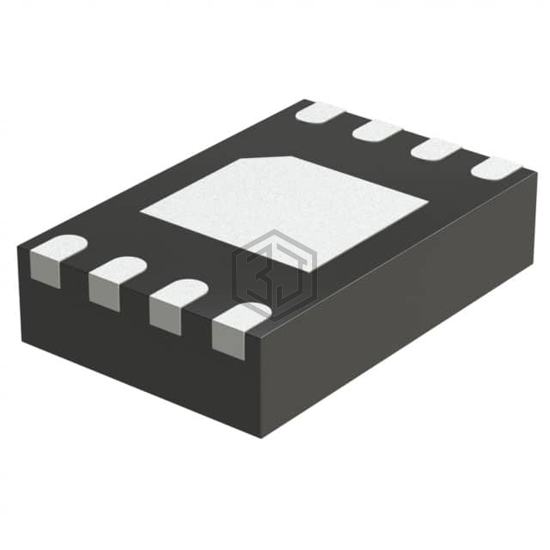

IC GATE DRVR LOW-SIDE 8TDFN
MCP14A0154T-E/MNY is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.
In Stock: 7,490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 11.5ns, 10ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A0155-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| MCP14A0153T-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| IX4428MTR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DFN | 98% | View |
| IX4426NTR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| MIC4428BMM | Microchip Technology | LOW-SIDE MOSFET DRIVER | 93% | View |
| MIC4427BMM-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 93% | View |
Submit your RFQ for MCP14A0154T-E/MNY and get a quote within 24 hours.
