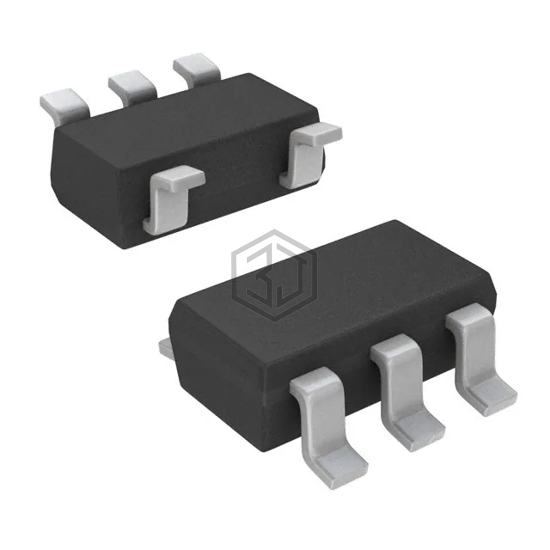

IC GATE DRVR LOW-SIDE SOT23-5
MCP1416T-E/OT is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case SC-74A, SOT-753.
In Stock: 3,610
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4432VOA713 | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 97% | View |
| TC4432VOA | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 97% | View |
| TC4432EOA713 | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 97% | View |
| MCP14A0152T-E/CH | Microchip Technology | IC GATE DRVR HI/LOW SIDE SOT23-6 | 93% | View |
| IRS44273LTRPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE SOT23-5 | 87% | View |
| TD350ETR | STMicroelectronics | IC GATE DRVR HIGH-SIDE 14SO | 68% | View |
