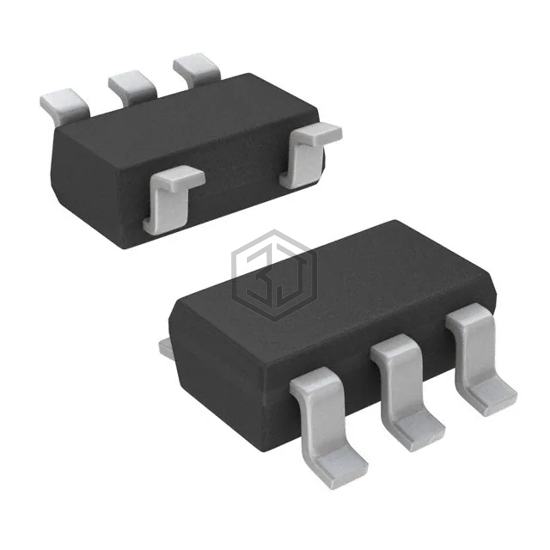

IC GATE DRVR LOW-SIDE SOT23-5
MCP1401T-E/OTVAO is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 18V, package / case SC-74A, SOT-753.
In Stock: 5,803
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 500mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 19ns, 15ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP1401T-E/OT | Microchip Technology | IC GATE DRVR LOW-SIDE SOT23-5 | 100% | View |
| MCP1402T-E/OT | Microchip Technology | IC GATE DRVR LOW-SIDE SOT23-5 | 100% | View |
| TC1410NEUA | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 97% | View |
| TC1410NEOA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 97% | View |
| TC1410NEOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 97% | View |
| TC1410EOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 97% | View |
Submit your RFQ for MCP1401T-E/OTVAO and get a quote within 24 hours.
