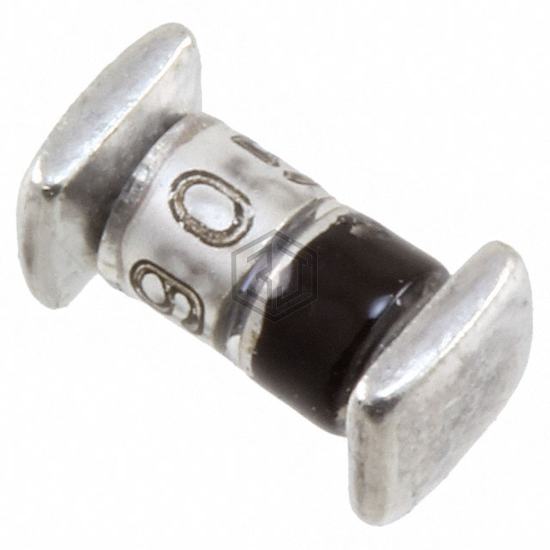

JANS1N5617US
DIODE GEN PURP 400V 1A D5A
JANS1N5617US is a Diodes - Rectifiers - Single manufactured by Microchip Technology. DIODE GEN PURP 400V 1A D5A. Key specifications: mounting type Surface Mount, package / case SQ-MELF, A.
In Stock: 2
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Current - Reverse Leakage @ Vr | 500 µA @ 400 V |
| Capacitance @ Vr, F | 35pF @ 12V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, A |
| Supplier Device Package | D-5A |
| Operating Temperature - Junction | -65°C ~ 200°C |
Frequently Asked Questions
JANS1N5617US is a Diodes - Rectifiers - Single manufactured by Microchip Technology. DIODE GEN PURP 400V 1A D5A
The mounting type of JANS1N5617US is Surface Mount.
The package type of JANS1N5617US is SQ-MELF, A.
Yes, JANS1N5617US is listed as Discontinued at Digi-Key. Consider requesting a quote for alternative parts.
